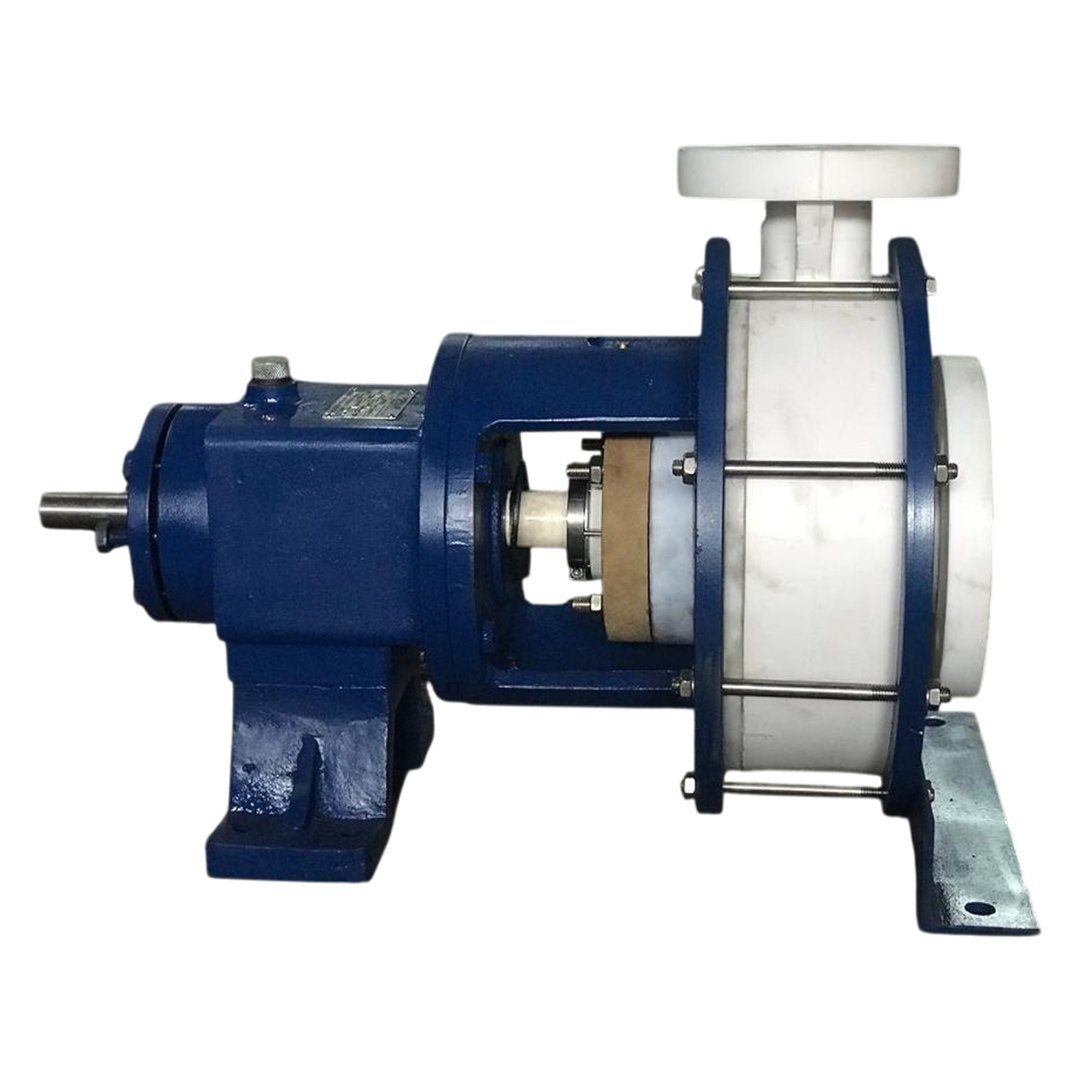

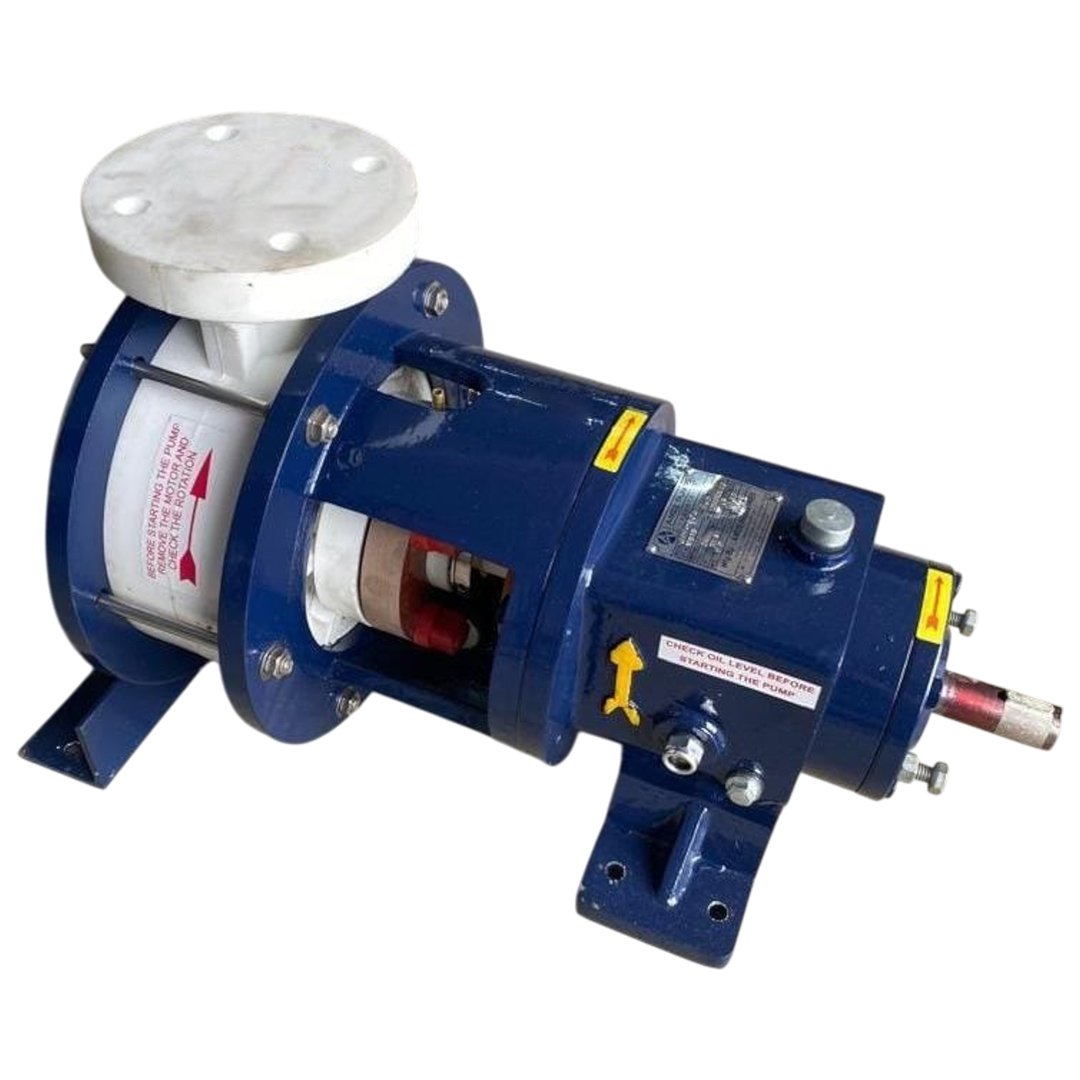

Single Stage – Solid Injection Molded Semi Open Impeller Chemical Process Pumps (RPP)

Available in Materials:

• Polypropylene

• PVDF

Fields of Application

The semi-open impeller is the acknowledged best design for process services.
It is ideally suited for corrosive/erosive liquids containing solids and stringy materials.

Applications include:

• Corrosive, pure and contaminated media

• Chemical, pharmaceutical, and petrochemical industries

• Metal processing

• Waste disposal and recycling

Design

• Single stage, frame mounted chemical process pump of heavy-duty design

• Flanges drilled to ANSI B16.5 Cl.150

• Mechanical seal: Single, Double, Inside, Outside etc.

Operating Range

• Delivery Heads: Up to 100 m

• Flow Rates: 1 – 150 m³/hr (50 Hz operation)

• Solids Handling: Depends on pump design

• Operating Pressure: Up to 10 bar

• Operating Temperatures: -10°C to +80°C

Performance curve of particular model available on request.

Priming Chamber

Centrifugal pumps may require a priming chamber as an auxiliary means of lifting liquid from below the pump centerline or from over a tank wall.

• Once filled, the pump can be started/restarted without re-priming.

• Chamber retains liquid after shutdown, creating vacuum at restart.

• Atmospheric pressure then forces liquid into the suction pipe, completing the prime.

Interchangeability Chart (RPP Series)

• RPP-170 (75x50)

• RPP-160 (75x40)

• RPP-160R (40x40)

• RPP-40 (50x40)

• RPP-50R (40x40)

• RPP-40/50 (75x40)

• RPP-55 (75x50)

Spare Parts:

• Impellers (Ø160mm, Ø142mm, Ø157mm, etc.)

• Adopter Rings (QXP-170, QXP-160, QXP-40)

• Back Plates (QXP-170, QXP-160, QXP-40)

• Shafts (QXP Series)

• Bearing Block (QXP)

• Oil Seal (35x72-8)

• Bearings (3306, 6207)

• Legs (QXP-170, QXP-160, QXP-40)

Other Roots Process Pumps

• Open impeller metallic pumps

• Closed impeller metallic pumps

• Non-metallic injection moulded pumps

• Non-metallic lined pumps

• Horizontal self-priming pumps

• Vertical self-priming pumps

• ANSI open impeller metallic pumps
